Aqua Flo Gen 5 Series Domestic UV Systems
A SECURITY SYSTEM FOR YOUR WATER
UV technology provides additional security for your water supply. It is proven to control microbiological (bacteria and virus) issues in water including E.coli, Cryptosporidium and Giardia Lamblia without the use of chemicals.
OUR MOST ADVANCED UV SYSTEM
All Gen 5 models come equipped with a sensor system that will set off an alarm if there is a lamp failure or if low UV conditions are detected. For customers who wanted added assurance that untreated water will never reach their taps, faucets or fixtures, the optional solenoid module can be added at any time to automatically shut off the water supply immediately after the alarm is set-off.
Gen 5 and Gen H5 Quick Comparison Chart
| Features | Gen 5 | Gen H5 |
|---|---|---|
| Maximum Flow Rate (@ 30 mJ/cm2 @95% UVT – industry standard) | 21 GPM | 40 GPM |
| UV Sensor Module | Upgrade | Upgrade |
| Solenoid Module | Upgrade | Upgrade |
| Branding: upgrade to add your business name to the display screen | Yes | Yes |
| UV lamp life | 9,000 hours | 10,000 hours |
| Sized to fit small spaces using high output UV lamp | No | Yes |
| Stainless Steel Grade | 304L SS | 316L SS |
| Designed and manufactured to ASME pressure vessel standards | Yes | Yes |
| Ability to add future upgrades (ie., sensor and/or solenoid modules) | Yes | Yes |
| User friendly bayonet style lamp connector (no tools required) | Yes | Yes |
| Industry proven low pressure, high-output coated UV lamps with ceramic base | Yes | Yes |
| Warranty | Yes - see Spec Sheet | Yes - see Spec Sheet |
Resources
Gen 5 Spec Sheet
#80157005
Gen H5 Spec Sheet #80157006
Gen Series UV Manual
# 9910094
UV Warranty # 80150348

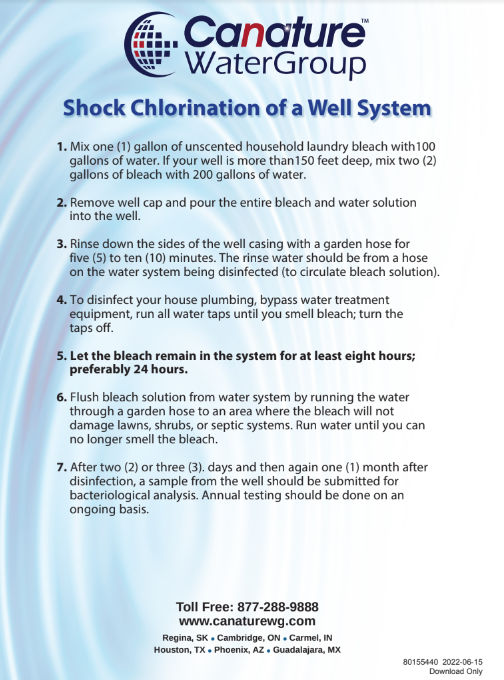

Shock Chlorination
#80155440
Gen 5 UV Combination Systems
Our Gen Series UV Rack Systems give home, cottage and business owners the ability to combine the disinfection powers of UV with sediment and/or carbon pre-treatment filters that improve the performance of the UV system as well as the taste, smell and clarity of your water.
Gen 5-8R1 Filter Rack Spec Sheet # 80157009
Gen 5-8R12 Filter Rack Spec Sheet # 80157009
Gen H5-13R2 Filter Rack Spec Sheet # 80157009
Gen H5-13R22 Filter Rack Spec Sheet # 80157009
